2020 new design colored pdlc electrochromic film
Designed to retrofit to existing transparent surfaces, 2020 new design colored pdlc electrochromic film by Noyark provides a simple and cost effective alternative to other switchable film technologies.
It is manufactured with 1 PDLC layer, 2 ITO films, 2 PET films and a self-adhesive cling layer on one side (peel and stick) which makes it easy to apply to both new and existing glass (no specialist installation equipment required).

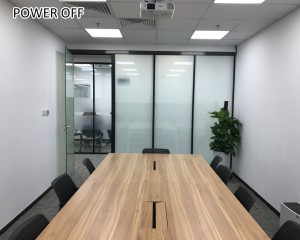

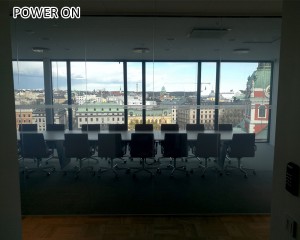

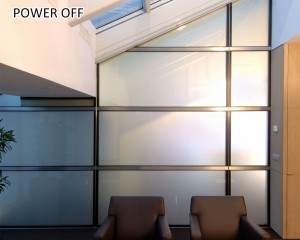

A simple ON – OFF mode switches the film from being clear (transparent) to frosted (opaque).
This unique film technology also transforms any glass into a high definition rear projection screen allowing you to display corporate presentations, TV images and videos. A truly innovative product making switchable film technology accessible to everyone while giving your home or business the added WOW factor.
2020 new design colored pdlc electrochromic film is available in 4 standard widths 1000mm, 1200mm, 1500mm and 1800mm with a maximum sheet length of 3000mm. Custom shapes and sizes are available and multiple pieces can be joined together to create large switchable glazed panels or partitions.
+ Self adhesive (peel and stick).
+ Simply apply to glass or plexiglas.
+ Suitable for permanent or temporary applications.
+ Customizable sizes and shapes.
+ Multiple Color Options: white, black, gray, blue, red, yellow, etc.
+ Multiple Control Mode: remote control, wall switch control, WIFI control, APP control, sound control, light control, etc.
|Space Partition||It provides architects and interior designers with a wide range of stylish projects solutions.|
|Privacy Protection||Privacy at the flip of a switch. It is a effective solution to prevent disturbance or peeping.|
|UV Protection||It blocks up to 99% of the sun’s UV rays protecting your skin and furnishings from fading.|
|Safety Protection||It reduces death or injury during an explosion by keeping shattered glass together.|
|Sound Insulation||It decreases the noise level reach 35 dB, helping to keep rooms cool, comfortable and quiet.|
|Width||N/A||In Roll: 1/1.2/1.5/1.8m; In Sheet: Cut to size|
|Length||N/A||In Roll: Unlimited; In Sheet: <3m (suggested)|
|Colors||ON/OFF||White, black, gray, blue, green, red, etc|
|Installation Method||N/A||Dry Apply|
|Working Temperature||ON||-35℃ to +75℃|
|Storage Temperature||OFF||-50℃ to +120℃|
WHY CHOOSE US
1. Hi-Tech Manufacturing Equipment
Our core manufacturing equipment is imported directly from Germany.
2. Strong R&D Strength
We have 15 engineers in our R&D centre, all of them are doctors or professors from University of Science and Technology of China.
3. Strict Quality Control
3.1 Core Raw Material.
Our ITO film (no shrinkage, no color difference) and liquid crystal spacer (excellent uniformity) are imported directly from Japan; glue is imported directly from Europe; our liquid crystal temperature range is 70°C and protective film is resist to high temperature 80-90°C.
3.2 Finished Products Testing.
High & low temperature test at 75°C and -35°C for 500 hours; thermal shock test 10°C-90°C for 30 minutes; damp heat test for 500 hours; moisture removed by oven; smart films in sheet are powered by a 24-hour aging test; smart films in roll are tested with 100V high voltage to make sure zero breakdown.
4. OEM & ODM Acceptable
Customized sizes and shapes are available. We have automatic cutting machine, manual cutting machine and laser cutting machine.
